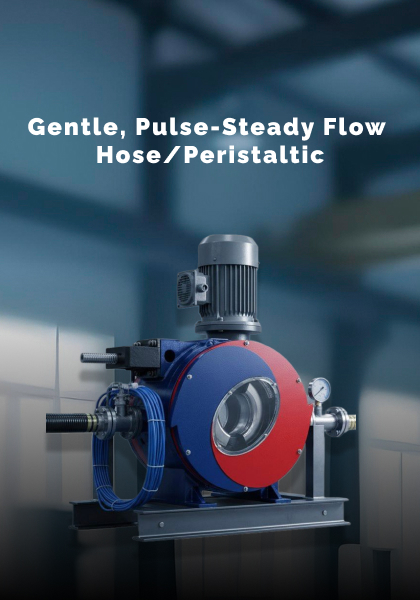

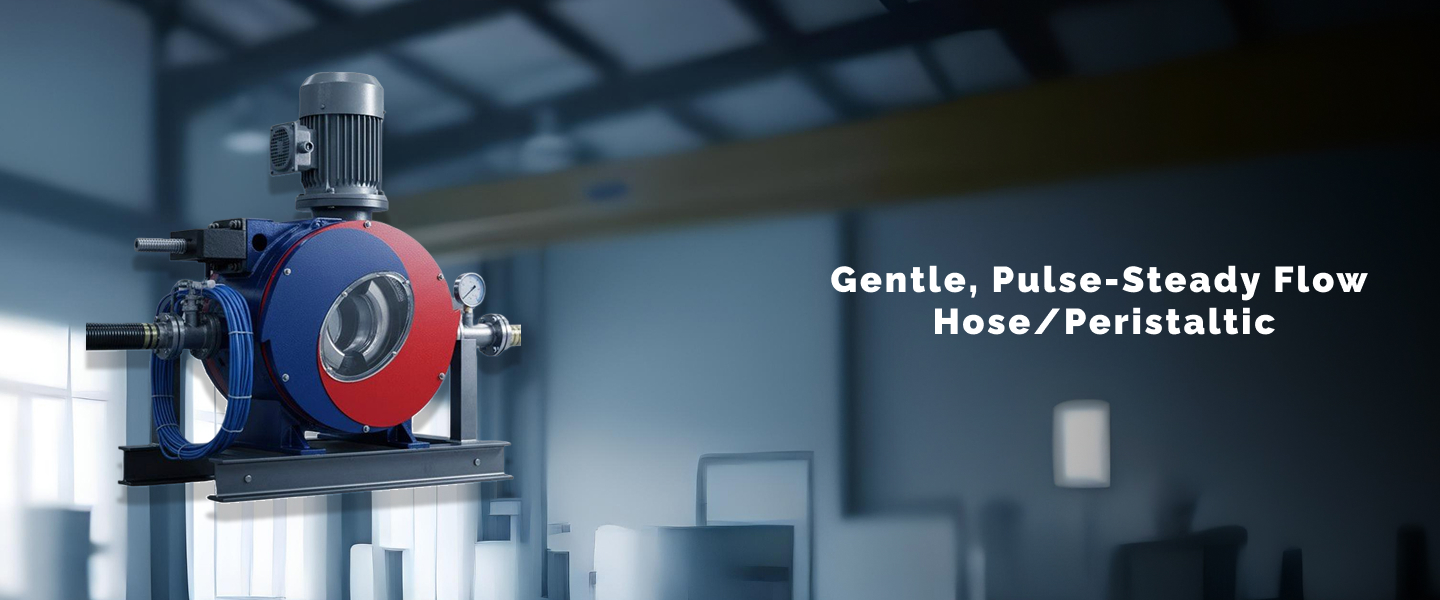

Hose or peristaltic pump is a kind of pump without any mechanical seal. It uses the motor to drive the pressure roller on the rotor to alternately squeeze the special hose installed in the pump cavity. Through the compression and rebound of the hose, a vacuum is formed, so as to achieve the purpose of sucking and conveying materials. The transported materials only contact with the hose. The pump has simple and reasonable structure, unique shape and wide application range.
Maximum Continuous Work Flow : 63000L/H
Maximum Dimension of Inner Hose 100 mm
Maximum Outlet Pressure 16 Bar
Maximum Temperature 100 Deg C
Accurate and repeatable dosing and metering
Dry-running
Long life and greater reliability
Lowest cost of ownership with quick and easy maintenance
No clogging
No leakage
No sealing
No valves
No wear
Self-priming
Abrasive & viscous slurries ( high concentrations of solids, dirt, grit and sand, gelatins)
Acids and acid neutralizers
Alcohols
Aluminum sulphate
Anionic and cationic polymer injection for phosphate removal, coagulation, and filtration
Bakery industry
Batching
Catalytic agents
Chemical dosing
Clay suspension
Copper tailings
Cyanide metering
Diatomaceous earth for yeast (removal) filtration
Effluent and waste treatment
Ferric chloride and alum injection for coagulation in primary treatment
Filter press feed
Flocculants and reagent feeds
Food processing
Hydrocarbons
Lead sulphate
Lime milk or lime slurry transfer for corrosion control
Mud
Pitching and dosing additives and flavorings – accuracy to 0.5% and 99% repeatability
Plating solutions
Polymers
PVDF Latex
Resin
Sludge clarifiers in primary treatment plants to remove suspended solids
Soap
Sodium hydroxide for pH control and cyanide removal
Solvents
Sulfuric acid
Thickeners
Titanium Dioxide
Transferring dewatered sludge for disposa
Viscous fluids
Waste transfer
CSM
EPDM
F-NR/F-NBR
NBR
NR
